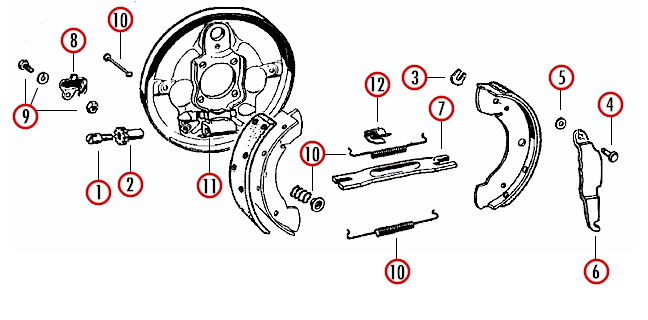

Brake Hardware

We do our best to carry all of the little hardware pieces that you need to redo your brakes right!

In mid-1958 starting with Chassis # 1673411, VW made a significant change on their brake systems on Beetles and Ghias. Gone were the earlier style 2-bolt wheel cylinders and most of the hardware changed or was reoriented at the same time. Please note this year break when ordering any hardware
.
Be sure to click the cart icon for further part detail and current stock availability.

ABC
Brake Shoe Adjusting Screws
illus Year Item # Price Info / Order
A 56-58 113609209 $5.95 ea.
B 58-64 211609209 $2.95 ea. Cart2.gif (943 bytes)
C 65-74 131609209 $2.95 ea. Cart2.gif (943 bytes)
D
Brake Shoe Adjusting Stars
illus Year Item # Price Info / Order
D 56-74 113609205A $4.95 ea. Cart2.gif (943 bytes)
E
Anchor Pin Retaining Clips
illus Year Item # Price Info / Order
E 56-74 211609619 $.50 ea. Cart2.gif (943 bytes)
F
Emergency Brake Lever Anchor Pins
illus Year Item # Price Info / Order
F 56-74 211609601B $2.95 Cart2.gif (943 bytes)
G
Spring (Wavy) Washer between Anchor Pin and Clip
illus Year Item # Description Price Info / Order
G -- N122282 8mm $.35
H

I
Emergency Brake Cable Levers
illus Year Item # Description Price Info / Order
H 58-74 113609613A Left side $12.95 Cart2.gif (943 bytes)
I 58-74 113609614A Right side $12.95 Cart2.gif (943 bytes)
J
Emergency Brake Cable Push Bar
illus Year Item # Price Info / Order
J 58-74 311609631 $9.95 Cart2.gif (943 bytes)
K       L
Emergency Brake Cable Brackets
illus Year Item # Description Price Info / Order
K 56-58 113609637 Left $5.95 Cart2.gif (943 bytes)
L 56-58 113609638 Right $5.95 Cart2.gif (943 bytes)
L 59-74 113609638 Left $5.95 Cart2.gif (943 bytes)
K 59-74 113609637 Right $5.95 Cart2.gif (943 bytes)
M   N
Emergency Brake Cable Bracket Attaching Hardware
illus Year Item # Description Price Info / Order
M 56-74 N102387 Bracket to backing plate bolt $0.30 Cart2.gif (943 bytes)
N 56-58 N110083 Nut for bolt $0.15 Cart2.gif (943 bytes)
O
Brake Backing Plate Dust Plugs
illus Year Item # Price Info / Order
O 68-74 113609163 $.95 ea. Cart2.gif (943 bytes)
P        Q     R

S  T
Brake Line Components
illus Year Item # Description Price Info / Order
P 56-74 803611755 brake line T-Connector $9.95 Cart2.gif (943 bytes)
Q 56-74 411611789 misc. brake line connector $6.95 Cart2.gif (943 bytes)
R 68 AT 113611791 brake line connector w/ chassis mount $12.95 Cart2.gif (943 bytes)
R 69-74 113611791 brake line connector w/ chassis mount $12.95 Cart2.gif (943 bytes)
S 56-74 113611715A rubber brake hose to bracket connector $1.95 Cart2.gif (943 bytes)
T 56-74 211611751 brake line grommet $1.95 ea. Cart2.gif (943 bytes)
U V

W
 Front Brake Drum Hardware Kits
illus Year Item # Price Info / Order
U 56-58 113698002A $12.95
V 58-64 111698002 $12.95 Cart2.gif (943 bytes)
W 65-74 113698002 $9.95 Cart2.gif (943 bytes)
X Y

Z
 Rear Brake Drum Hardware Kits
illus Year Item # Price Info / Order
X 56-58 113698002A $12.95
Y 58-64 111698003 $12.95 Cart2.gif (943 bytes)
Z 65-74 113698003 $9.95 Cart2.gif (943 bytes)
1
Brake Leaf Spring
illus Year Item # Description Price Info / Order
1 56-66 211609185A front $2.95
1 56-74 211609185A rear $2.95
2
Emergency Brake Push Rod Spring Clip
illus Year Item # Price Info / Order
2 56-74 113609625 $2.95
